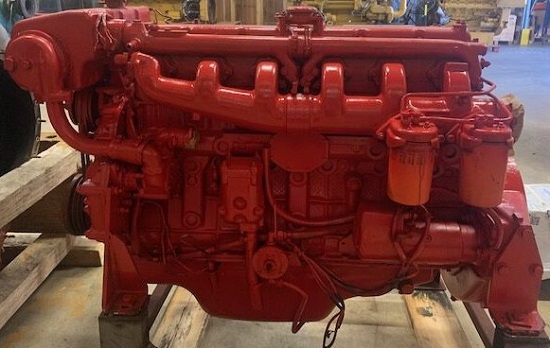

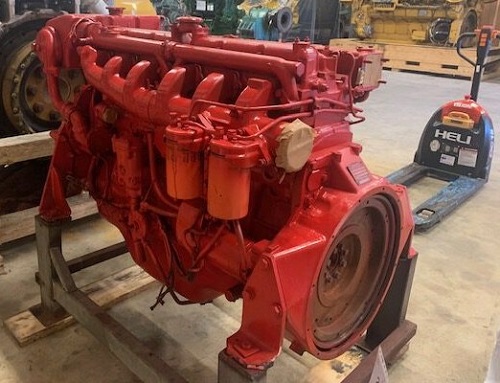

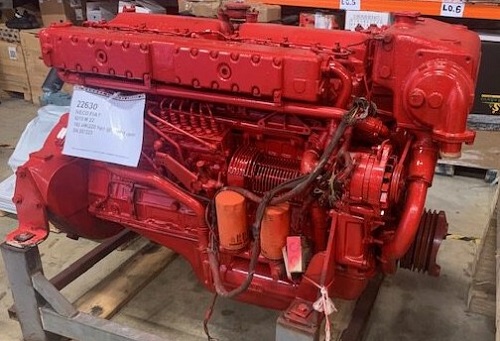

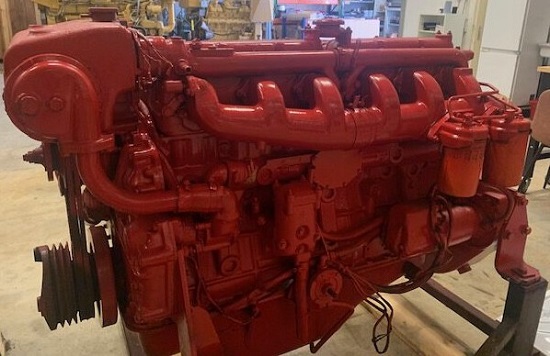

IVECO FIAT 8210 M 22 162 kW (220 hp)

The IVECO FIAT 8210 M 22 is a versatile and durable diesel engine delivering 162 kW (220 hp) of reliable power, ideal for industrial, agricultural, and marine applications. Designed with efficiency and longevity in mind, this engine is widely used in machinery, trucks, and medium-duty workboats requiring consistent performance under demanding conditions.

This engine features a 6-cylinder inline configuration with a robust fuel injection system, ensuring smooth operation and optimized fuel efficiency. Its rugged construction allows it to operate reliably in harsh environments, providing long service intervals and straightforward maintenance.

The 8210 M 22 combines proven IVECO FIAT engineering with modern durability standards, offering dependable torque delivery, stable power output, and low vibration levels for comfortable and efficient operation. It is suitable for operators seeking a balance of performance, reliability, and cost-effectiveness.

Applications:

• Medium-duty trucks and transport vehicles

• Industrial machinery and generators

• Workboats and small ferries

• Agricultural machinery

Highlights:

• Power Output: 162 kW (220 hp)

• 6-cylinder inline diesel engine

• Robust and fuel-efficient design

• Smooth operation with low vibration

• Easy maintenance and long service intervals

Technical Specifications

General Engine Data

• Engine Model: 8210 M 22

• Engine Type: 4-stroke, water-cooled diesel engine with direct injection

• Cylinder Configuration: 6 in-line

• Total Displacement: 5.9 – 6.0 L (approx.)

• Bore × Stroke: 102 × 120 mm

• Aspiration: Naturally aspirated or turbocharged (depending on variant)

• Compression Ratio: 17:1

• Flywheel & Housing: SAE standard

• Dry Weight: ~650–700 kg

• Cooling System: Water-cooled, thermostatically controlled

Performance

• Rated Power Output: 162 kW (≈ 220 hp)

• Rated Engine Speed: 2,500 rpm

• Torque: ~800 Nm @ 1,500–1,700 rpm

• Emission: Meets Euro II / Tier II standards (depending on year of manufacture)

Operation & Use

• Suitable for medium-duty trucks, workboats, industrial machinery, and agricultural equipment

• Designed for durability and reliability under continuous operation

• Easy access for maintenance with robust components ensuring long service life

• Fuel-efficient design optimized for both performance and operational economy
