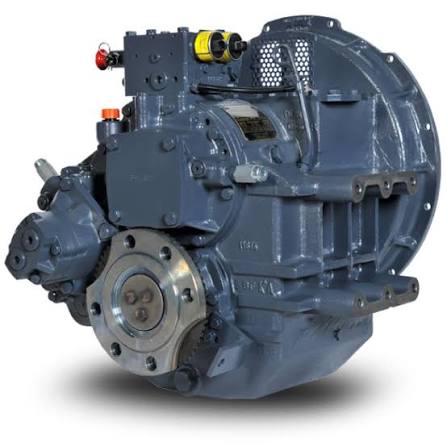

TWIN DISC MGX-5114 IV MARINE
The Twin Disc MGX-5114 IV is a high-performance marine gear transmission equipped with Twin Disc QuickShift technology. This Twin disc mgx 5114 iv marine price integrated system combines the transmission, clutch, valves, and electronic controls to provide exceptionally fast, smooth clutch engagement, precise boat handling, and instant throttle response.
The Twin disc mgx 5114 iv marine for sale “IV” designation specifies that this particular model features an Integral V-drive configuration with a 14° down angle on the output shaft, making it ideal for compact, space-saving engine room layouts.
Key Specifications & Ratings Twin disc mgx 5114 iv price
- Maximum Output: Up to 673 kW (900 hp) at 2300 RPM depending on the specific vessel service classification.
- Maximum Engine Speed: Accommodates a maximum input speed of 3000 RPM for standard right-hand rotation engines.
- Housing Material: Lightweight aluminum housing to optimize vessel weight.
- Housing Size: Designed for standard SAE J617 housing no. 1 configurations
Optional Features
The system can be customized with several performance and configuration options:
- EC050 E-Troll module: For electronic trolling and precise ultra-low-speed maneuvering.
- Flexible Couplings: Available for both 11.5” and 14” flywheels.
- Live Power Take-Off (PTO): Supports hydraulic pump mounts up to SAE “C” (4-bolt, max 592 Nm).
- Control Harness: Single-point interface connecting directly to the Twin Disc EC300 control system.
- Cooling: External oil cooler equipped with a thermostatic bypass valve
