Description

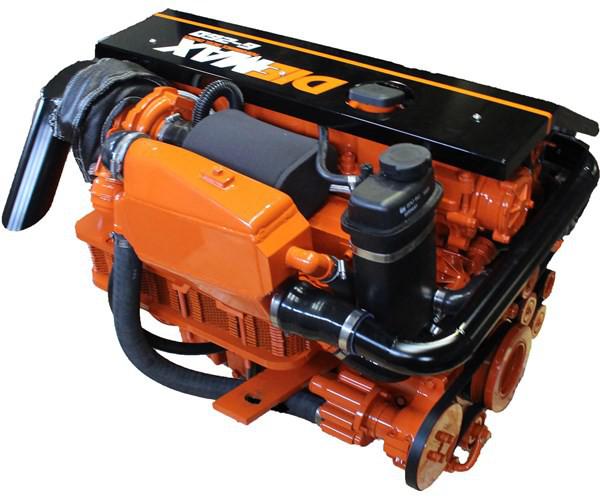

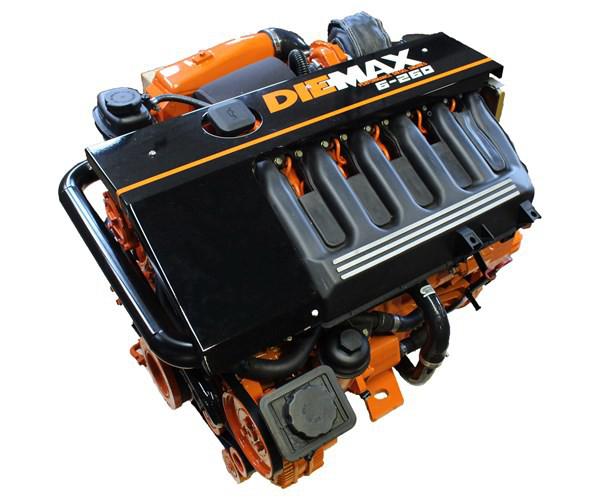

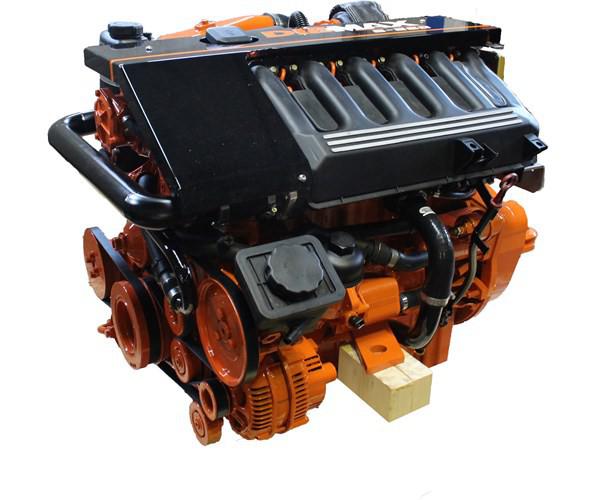

Diemax 260 Diesel Engine

The Diemmax inline six-cylinder has been specially developed for installation in fast lightweight boats and cruisers. With the use of lightweight materials such as aluminium, titanium and carbon fiber the engine fits in all kinds of vessels. Due to the use of diesel (economic and safe), the engines are also particularly suitable for tenders or yachts and fast professional boats. The twin turbocharged inline six-cylinder has a maximum speed of 4000 rpm. The inline six-cylinder is only 770 mm wide and 900 mm long.

Features:

Compact
Takes up little space, so more space for “comfort” or extra engine. The one and only in “Power to Room” ratio.

Lightweight
The aluminum engine block is the solution for boats where weight is important. The one and only in: “Power-to-Weight” ratio.

Safe
Diesel is less flammable, so it is safer!

Economic
The Diemmax engines are more economical and durable than petrol engines.

Reliable
The Diemmax engines have a significantly longer life than petrol engines.

Diemmax 260 Diesel Engine Specifications

• Model / Series: Diemmax 6-series 260HP

• Power Output: 191 kW / 260 HP (peak power)

• Maximum Torque: 550 Nm

• Peak Power Speed: ~4,000 rpm

• Peak Torque Speed: ~2,100–2,750 rpm

• Number of Cylinders: 6

• Displacement: ~2,993 cm³

• Bore × Stroke: 84 × 90 mm

• Fuel System: Common rail 1,600 bar

• Cooling System: Closed internal cooling with raw water pump

• Dry Weight: ~280 kg

• Dimensions (L×W×H): ~850 × 725 × 500 mm

• Electrical System: 12 V with 120 A alternator

• Engine Mounting: Rubber type flexible mounting
