Description

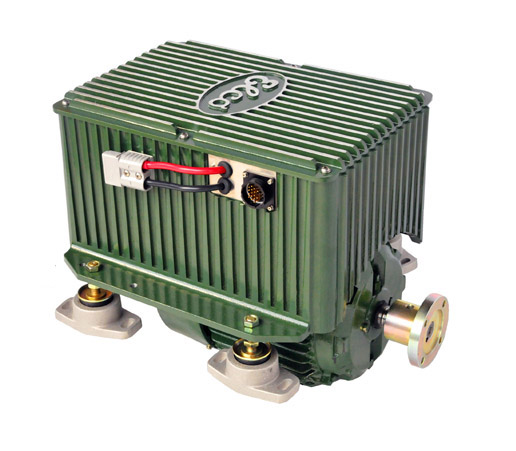

Elco EP-600 6hp 36Vdc 735Ah Electric Motor

Elco EP System – Electric Boat Propulsion at Its Finest

The Elco Electric Propulsion System is well engineered using advanced technologies for reliable and outstanding performance. All of Elco’s products are built in the USA.

Elco Electric Motor: Cool, Quiet & Powerful

The entire propulsion system, excluding instrument panel and batteries, is contained in a water resistant cast aluminum finned housing that contains all of the electronics, AC motor, and safety devices. The system is mounted directly in place of a typical marine diesel or gas engine.

Whether on the sound, around the bay, along the lake, or on the river, it is highly valuable to protect our waters. The Elco Electric Propulsion System is a highly efficient and extremely durable alternative to fossil fuel options

MOTOR SPECIFICATIONS (EP-600)

Boat size ranges (see note 1 below) : up to 25′
Horsepower diesel equivalency : 6 h.p.
Suggested horsepower replacement range : 2 – 8 h.p.
Miles per gallon equivalency : 80 mpg
Length : 17″
Width : 16.22″
Height : 15.8″
Weight : 170 lbs

ELECTRIC SYSTEM

Cruising speed 60%-80% of hull speed : 4 – 4.5 knots
Cruising time 60%-80% of hull speed : 9 – 4 hours
Cruising range 60%-80% of hull speed : 39 – 21 nm
Recharging time for standard charger (shore power-50% depth of discharge) : 3 – 4 hours
Recharging time for quick charger (shore power-50% depth of discharge) : 2 – 3 hours
Number of 12 volt 8-D batteries (245 Ah) : 3 batteries
Battery bank voltage in total : 36 Vdc
Amps (maximum) : 70 amps
Kilowatts (max full power from batteries) : 2.5 kW
Number of chargers required : 1 charger
Charger : Elcon PFC 1500
Quick charger (optional) : Elcon PFC 200

Every Elco Motor System Package includes:

– Elco Motor
– Battery Charger
– E-Gauge IV
– Throttle
– Ignition key & switch
– Power on light
– Power boost button
– Controller/Inverter
– 15′ Pre-wired harness
– Installation Manual
