Description

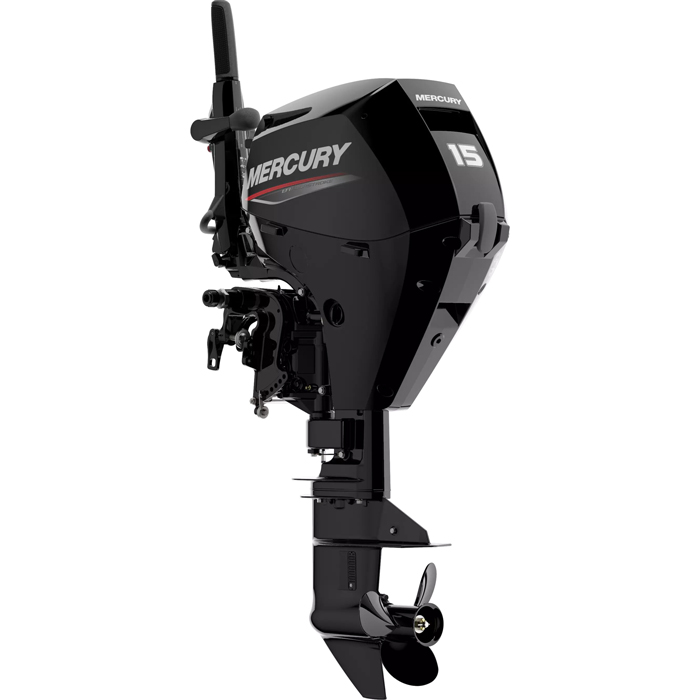

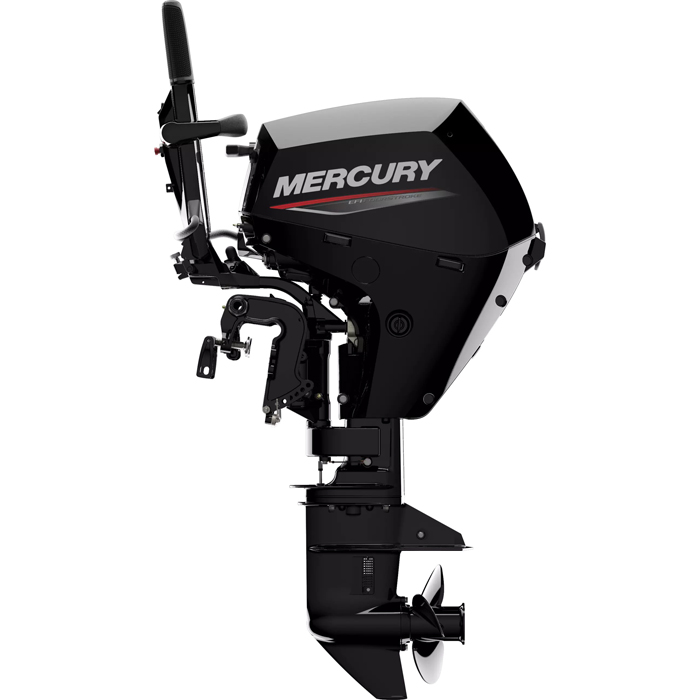

MERCURY 15 HP|15EH EFI 4-Stroke

The large 21.4 cubic inch displacement powerhead of the Mercury 15hp EFI develops plenty of low-end torque, making it an excellent source of power for medium to larger sized jon boats, skiffs, and inflatables. This 111 lb. 15 HP outboard motor is equipped with manual start and the 15 inch short shaft. Mercury outboard engines that surpass industry standards and deliver power and fuel economy.

Features:

Large Displacement Powerhead (351cc)
Electric Start + 12V 138W 12A Alternator
Thru-Cowl Backup Manual Start
Digital CD Ignition with Spark Advance
Tuned Intake for Quick Acceleration
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Rated for Saltwater Use
Sacrificial Zinc Anodes and Trim Tab

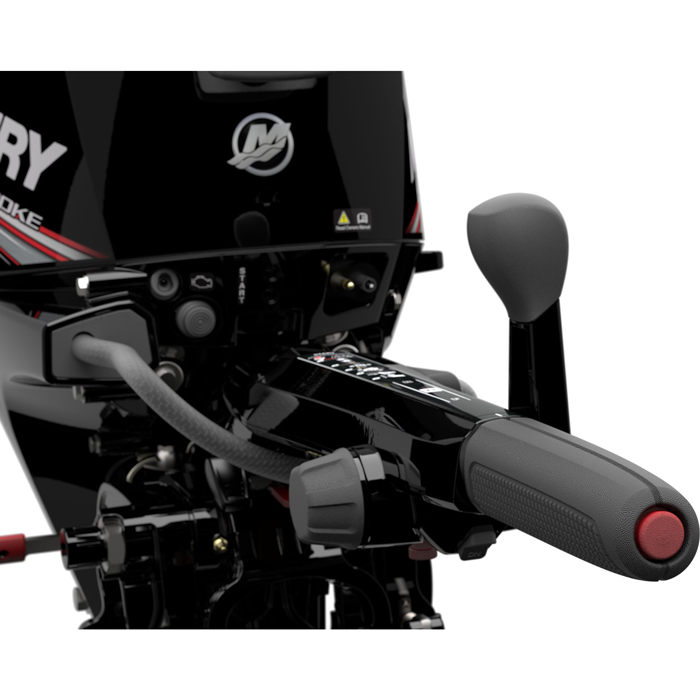

Tiller Integrated F-N-R Gear Shifting
Adjustable Steering Tension Control
Twist-Grip Throttle with Tension Control
Thermostat Controlled Water Cooling
Shallow Water Drive
Quiet Through-Propeller-Hub Exhaust
“Wishbone” Mount for Reduced Vibration
3.2 Gallon Fuel Tank and Fuel Line
Easy Maintenance Canister Oil Filter
Start-In-Gear Protection
Low Oil Pressure Warning Indicator
ESG Over-Rev Protection
Safety Lanyard Stop Switch
Owner’s Manual
Mercury Marine 3-Year Warranty

Specifications:

MODEL : 1A15301BK
MODEL YEAR : 2020
SKU : 15EH-20EFI
WEIGHT : 111.0 lb
MANUFACTURER : Mercury
COUNTRY OF MANUFACTURE : Japan
HORSEPOWER : 15hp
SHAFT LENGTH : 15″ (Short)
STEERING : Tiller
STARTING : Electric
TRIM & TILT : Manual
FUEL DELIVERY : EFI
FUEL TANK : External
CYLINDER(S) : 2
DISPLACEMENT : 333 cc (20.3 cubic inches)
BORE AND STROKE : 61 mm x 57 mm (2.402 in. x 2.244 in.)
FULL THROTTLE RPM RANGE : 5000-6000
IGNITION SYSTEM : Digital CD Ignition w/Electronic Spark Advance
INDUCTION SCAVENGING : SOHC
VALVES PER CYLINDER : 2
FUEL TYPE : 87 Octane (up to 10% ethanol content)
FUEL TANK / FUEL LINE : 3.2 Gal. Fuel Tank + Quick Connect Fuel Line
OIL TYPE : SAE 10W-30 (Mercury 4-Stroke Outboard Oil)
OIL CAPACITY : 1 Quart (1000 ml)
LUBRICATION : Trochoid Pump
ALTERNATOR : 12V 138W 12A (standard on electric start models)
COOLING SYSTEM : Water-Cooled, Thermostatically Controlled
SALTWATER RATED : Yes
GEAR RATIO : 2.15:1
GEAR SHIFT : Forward-Neutral-Reverse (shift in tiller handle)
PROPELLER : 9.2″ Diameter X 9.8″ Pitch 3-Blade Aluminum

Package Included:

Fuel Tank
Quick Connect Fuel Line
Aluminum Propeller
Mercury 4-Stroke Oil
Owner’s Manual & Tool Kit
Remote Control Box Kit Mercury Side Mount Trim & Tilt
Service Manual
Outboard Motor Cover
Single carburetor
Water Cooled
Integrated Carry Handle
Safety Lanyard Stop Switch
Single Mixing Valve
Electronic Fuel Injection
