Description

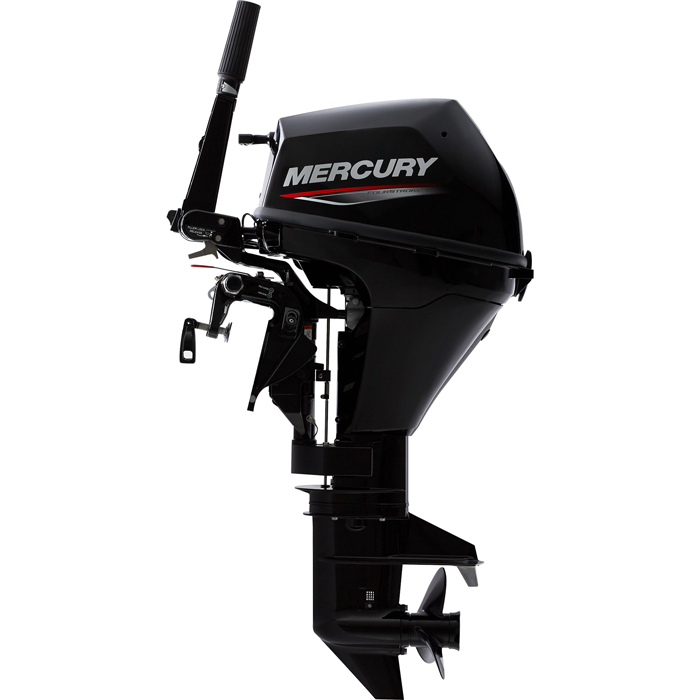

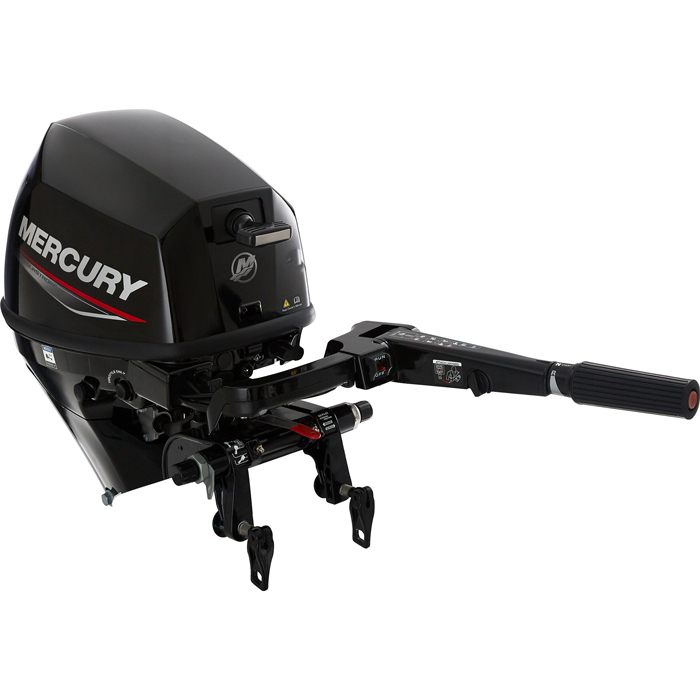

MERCURY 9.9ELH 9.9 HP 4-Stroke

The portable 2020 Mercury 9.9hp outboard motor is lightweight, compact, and powerful at 93 lbs. Mercury model #: 9.9ELH comes equipped with an electric start and a 20 inch long shaft, auto ratchet tilt, and multi function tiller control. The 9.9 ELH is a great choice for long shaft jon boats, skiffs, and small pontoons as well as sailboat power. The Mercury 9.9 HP outboard engine is a twin-cylinder four-stroke that delivers smooth, quiet, fuel efficient operation with the reliability that Mercury is known for. Mercury Marine provides a 3 year factory warranty that begins the date of purchase.

Features:

Compact and Lightweight
Electric Start + 12V 76W 6A Alternator
Thru-Cowl Backup Manual Start
Digital CD Ignition with Spark Advance
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Rated for Saltwater Use
Sacrificial Zinc Anodes and Trim Tab
Tiller Integrated F-N-R Gear Shifting

Adjustable Steering Tension Control
Twist-Grip Throttle with Tension Control
Thermostat Controlled Water Cooling
Auto Ratchet Trim System (5 positions)
Shallow Water Drive
Quiet Through-Propeller-Hub Exhaust
3.2 Gallon Fuel Tank and Fuel Line
Start-In-Gear Protection
Low Oil Pressure Warning Indicator
ESG Over-Rev Protection
Safety Lanyard Stop Switch
Owner’s Manual
Mercury Marine 3-Year Warranty

Specifications:

MODEL : 9.9ELH
MODEL YEAR : 2020
SKU : 9.9ELH-20
WEIGHT : 103.0 lb
MANUFACTURER : Mercury
COUNTRY OF MANUFACTURE : Japan
HORSEPOWER : 9.9hp
SHAFT LENGTH : 20″ (Long)
STEERING : Tiller
STARTING : Electric
TRIM & TILT : Manual
FUEL DELIVERY : Carburetor
FUEL TANK : External
CYLINDER(S) : 2
DISPLACEMENT : 208 cc (12.8 cubic inches)
BORE AND STROKE : 55 x 44 mm (2.16 x 1.73 inches)
FULL THROTTLE RPM RANGE : 5000-6000
IGNITION SYSTEM : Digital CD Ignition w/Electronic Spark Advance
INDUCTION SCAVENGING : SOHC
VALVES PER CYLINDER : 2

FUEL TYPE : 87 Octane (up to 10% ethanol content)
FUEL TANK / FUEL LINE : 3.2 Gal. Fuel Tank + Quick Connect Fuel Line
OIL TYPE : SAE 10W-30 (Mercury 4-Stroke Outboard Oil)
OIL CAPACITY : 27 fl. Oz. (800 ml)
LUBRICATION : Trochoid Pump
ALTERNATOR : 12V 76W 6A (standard on electric start models)
COOLING SYSTEM : Water-Cooled, Thermostatically Controlled
SALTWATER RATED : Yes
GEAR RATIO : 2.08:1
GEAR SHIFT : Forward-Neutral-Reverse (shift in tiller handle)
PROPELLER : 8.5″ Diameter X 8.0″ Pitch 3-Blade Aluminum

Package Included:

Fuel Tank
Quick Connect Fuel Line
Aluminum Propeller
Mercury 4-Stroke Oil
Owner’s Manual & Tool Kit
Remote Control Box Kit Mercury Side Mount Trim & Tilt
Service Manual
Outboard Motor Cover
Single carburetor
Water Cooled
Integrated Carry Handle
Safety Lanyard Stop Switch
