Description

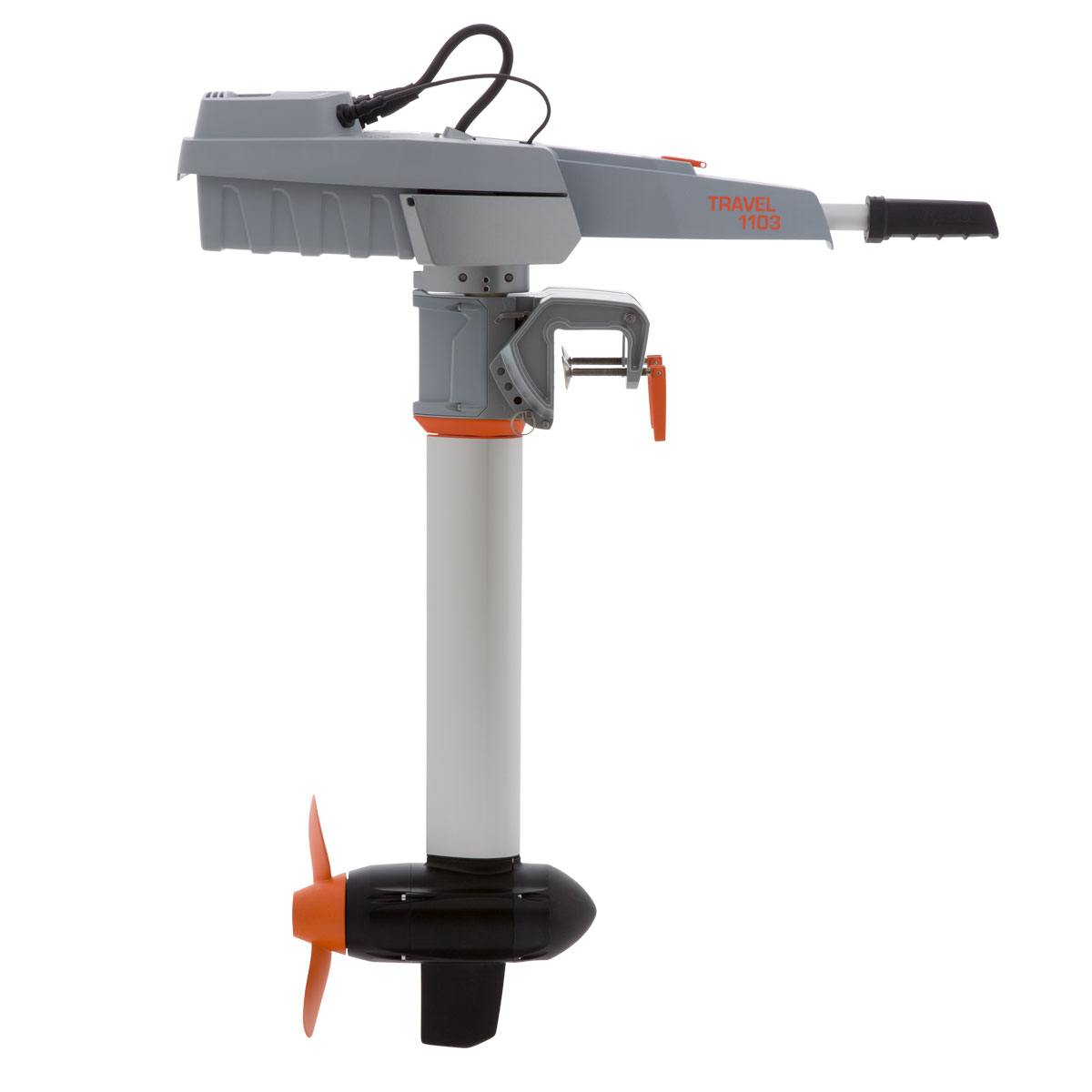

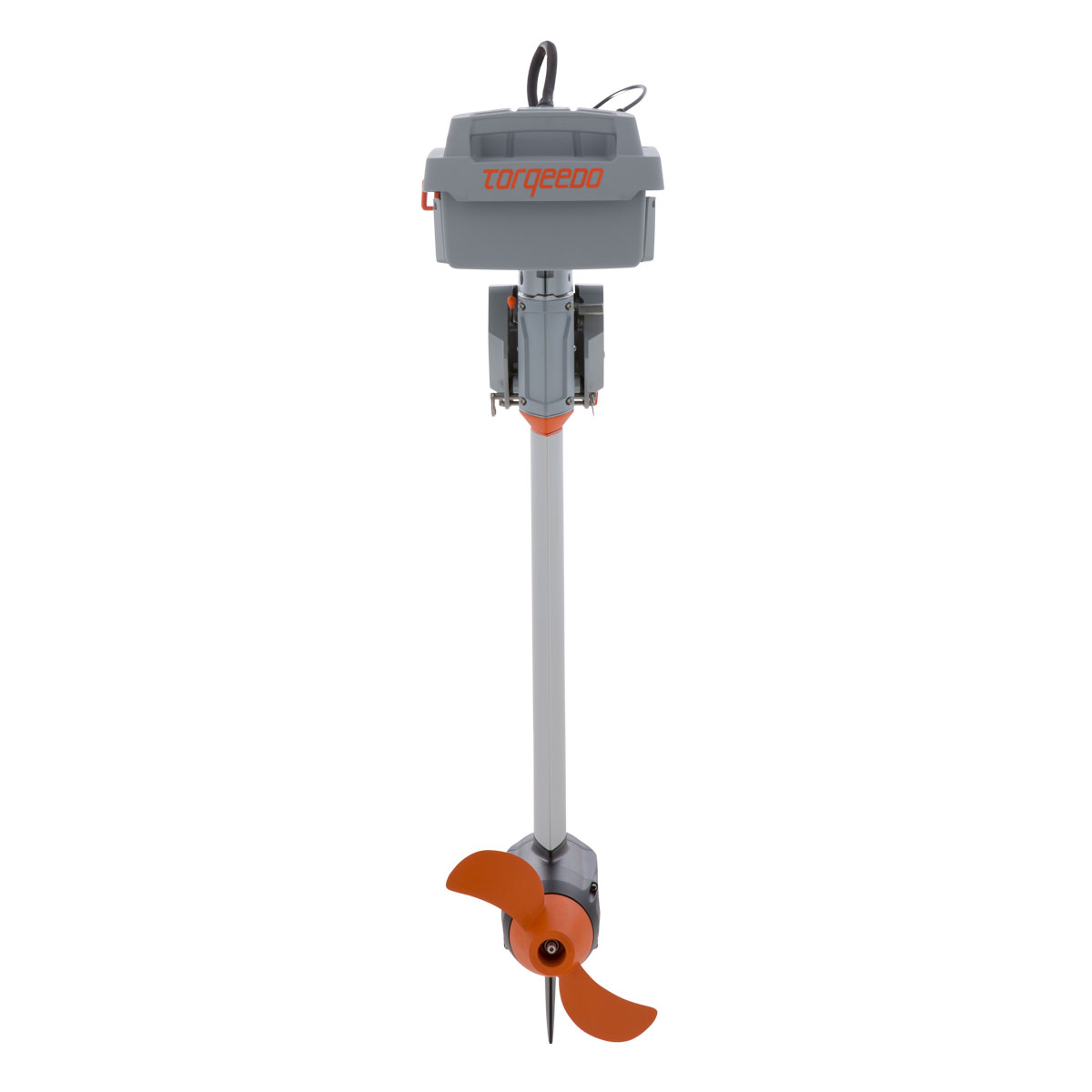

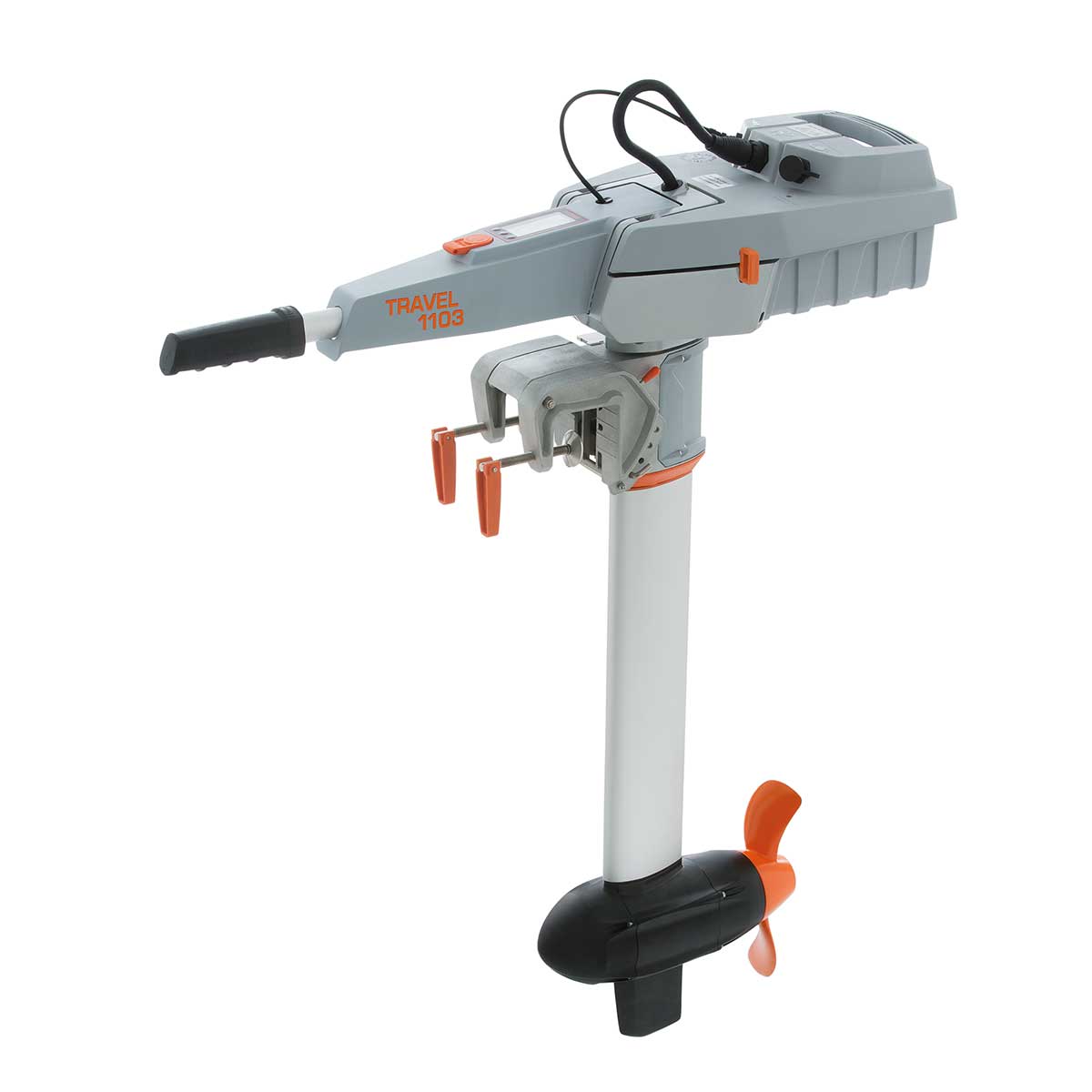

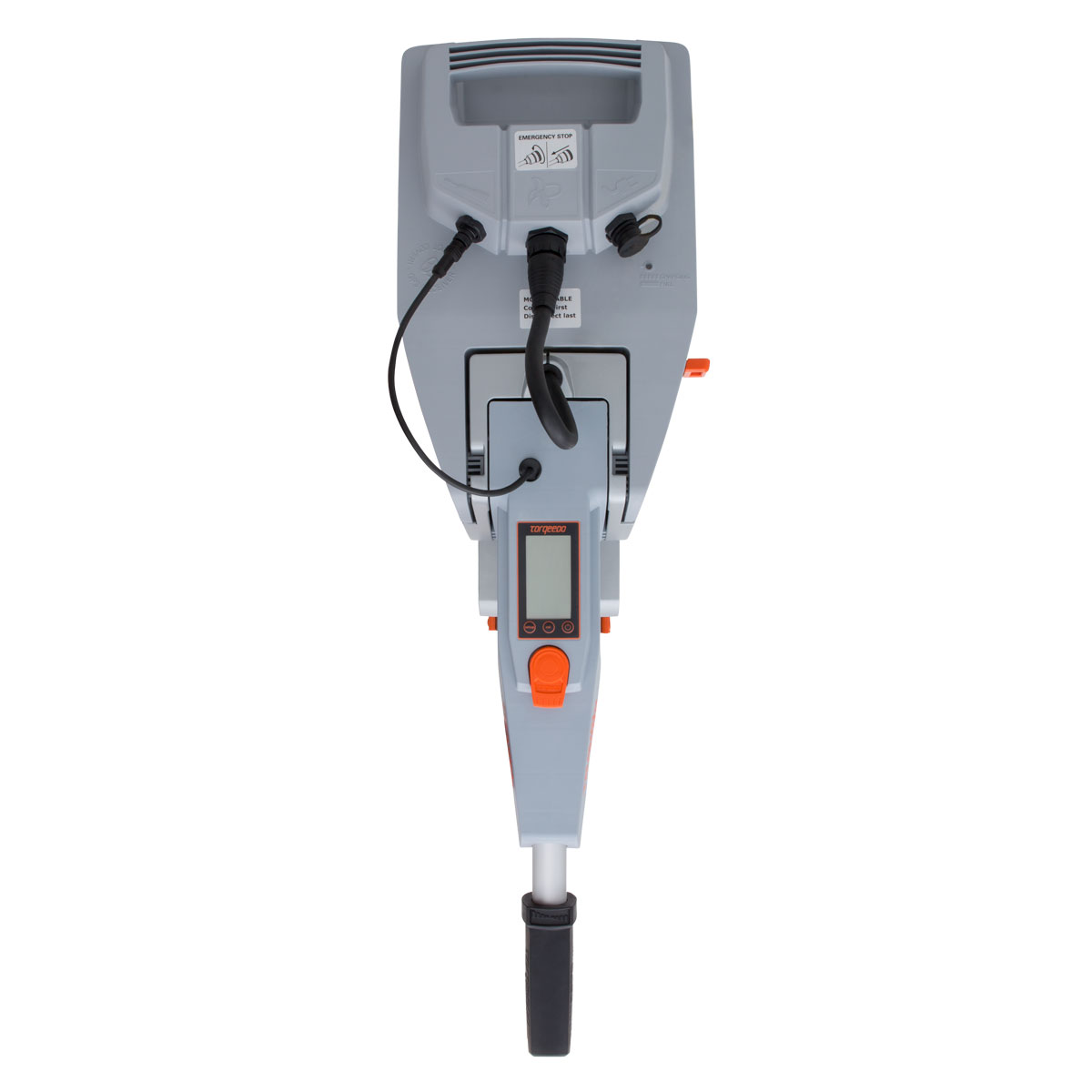

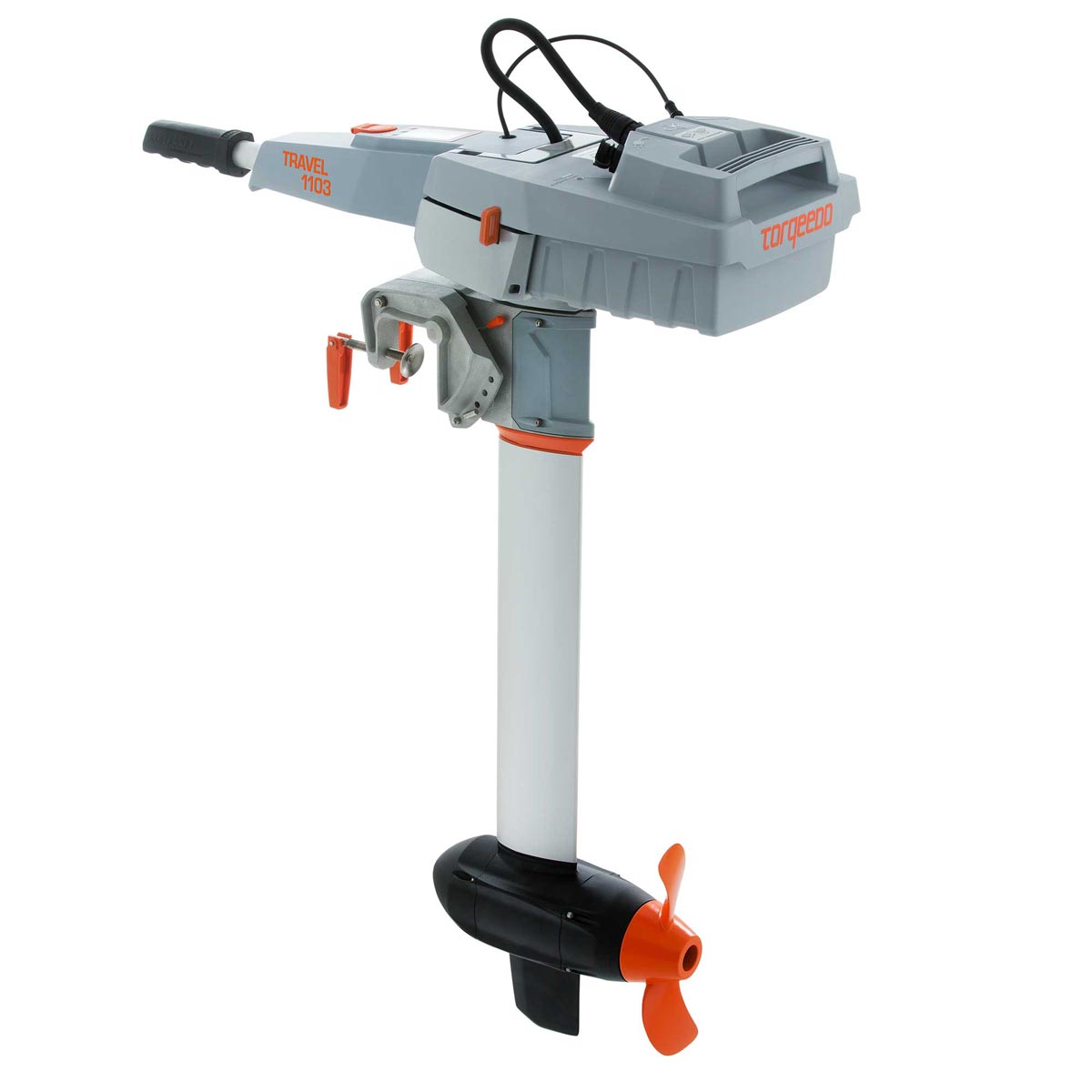

Torqeedo Travel 1103 CS

high-efficiency outboard with integrated 915 Wh high-performance lithium battery
including onboard computer with GPS-based range calculation and charger
ultra-quiet (33db), clean and compact
silent direct-drive
instantaneous throttle response
10% more power
improved durability
3 HP equivalent
emergency magnetic kill switch, short shaft
completely waterproof (IP67)
total weight 17.3 kg (S) / 17.7 kg (L)
shaft length: short 62.5 cm / long 75 cm

Item number: 1151-00 | EAN: 4260113695371

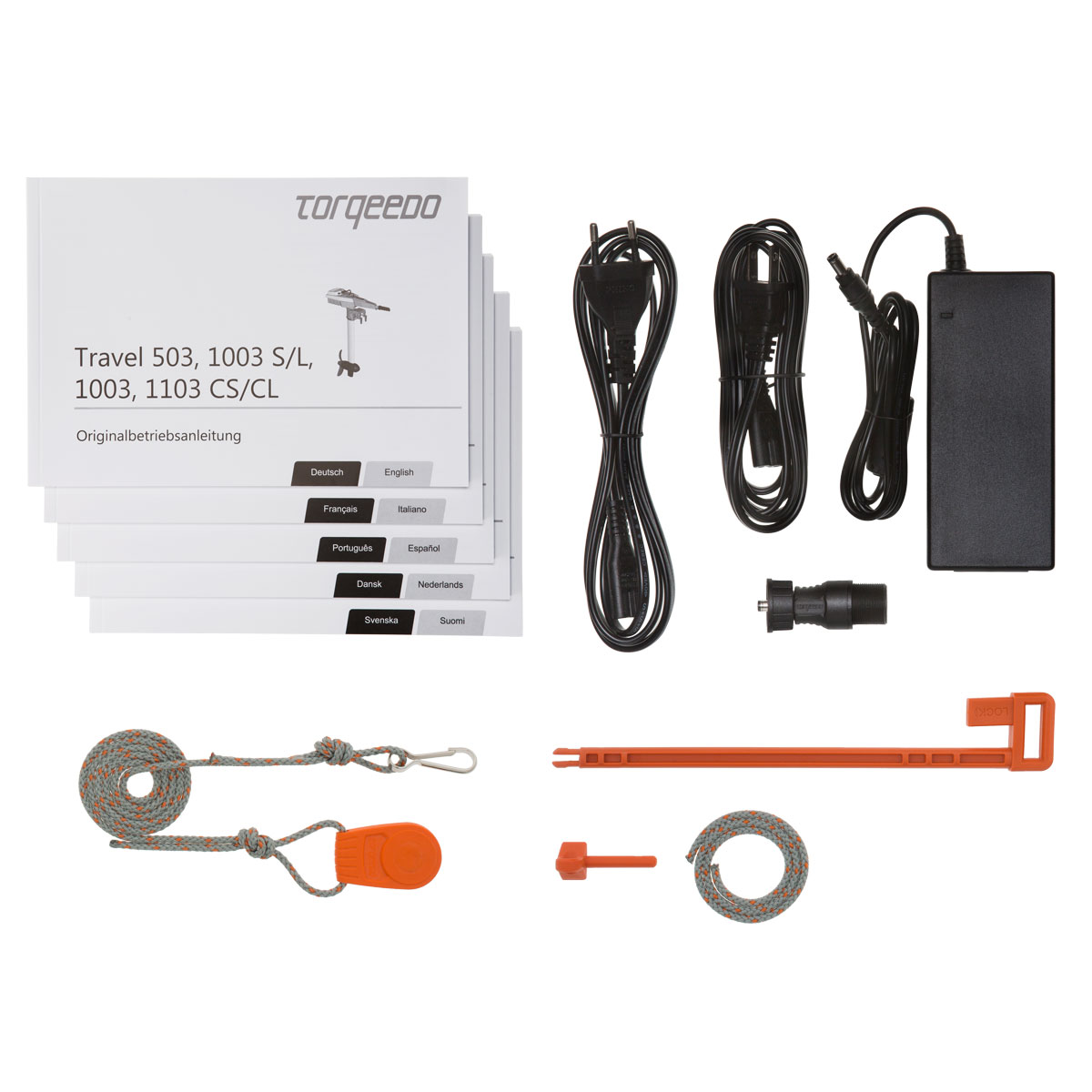

Equipment included: Torqeedo Travel 1103 CS with battery, charger & emergency magnetic kill switch
Warranty: 2 years

Range
Travel 1103 C with integrated 915 Wh battery (29.6 V / 31 Ah)
Speed in knots (km/h)* Range in sm (km)* Running time in hours:
Slow 2.0 (3.7) 40.0 (74.0) 20:00
Half throttle 3.0 (5.5) 18.0 (33.0) 06:00
Full throttle 5.5 (10.0) 4.6 (8.3) 00:50

* Depends on type of boat, load, propeller and conditions. Speed and range indications do not represent a legal guarantee.

Information on range and speed
For a displacement boat making way through the water, the required propulsive power increases in proportion to the cube of the speed. This means that if you want to double your speed, you need eight times as much power.
And vice-versa, a small reduction in speed is enough to increase the achievable range substantially.
The Torqeedo Travel 1103 CS on-board computer calculates the remaining range constantly, by linking the motor’s consumption data with the charging level of the batteries, and the speed over the ground from the GPS. This allows you to read the remaining range in real time from the motor display or the smartphone app TorqTrac.

Operating Instructions
Travel 1103 C Operating Instructions
Travel 1103 C Operating Instructions – German / English
Travel 1103 C Operating Instructions – French / Dutch
Travel 1103 C Operating Instructions – Spanish / Portuguese
Travel 1103 C Operating Instructions – Swedish / Finnish
Travel 1103 C Operating Instructions – Dutch / Danish

Specifications
Technical Data Torqeedo Travel 1103 CS
Torqeedo Travel 1103 CS
Input power in watts 1100
Propulsive power in watts 520
Comparable petrol outboards (propulsive power) 3 HP
Comparable petrol outboards (thrust) 4 HP
Maximum overall efficiency in % 49
Static thrust in lbs* 70
Integrated battery 915 Wh Li-Ion
Nominal voltage 29.6
Final charging voltage 33.6
Total weight in kg 17.3(S) / 17.7 (L)
Motor weight without battery in kg 11.3(S) / 11.7(L)
Weight of integrated battery 6.0
Shaft length in cm 62.5(S) / 75(L)
Standard propeller
v = speed in km/h at p = power in watts v10/p1100
Alternative propeller options v10/p1100 weedless
Maximum propeller speed in rpm 1,450
Control Tiller
Steering +/-60° lockable
Tilting device Manual, with impact protection, 78°
Trim device Manual, 4-step
Integrated on-board computer Yes
Stepless forward/reverse drive Yes

* Torqeedo static thrust measurement is based on internationally accepted ISO standards. Static thrust figures for conventional trolling motors are typically measured differently, which results in higher values. To compare Torqeedo static thrust data with conventional trolling motors, add approximately 50% to the Torqeedo static thrust values.
