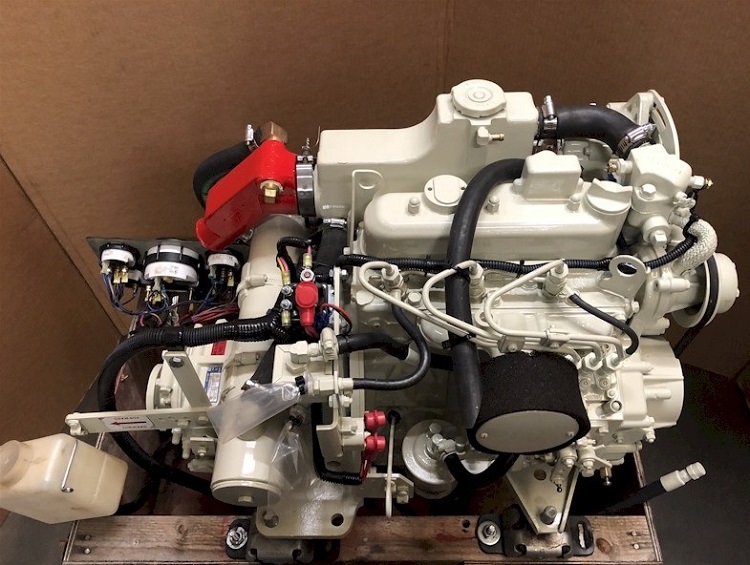

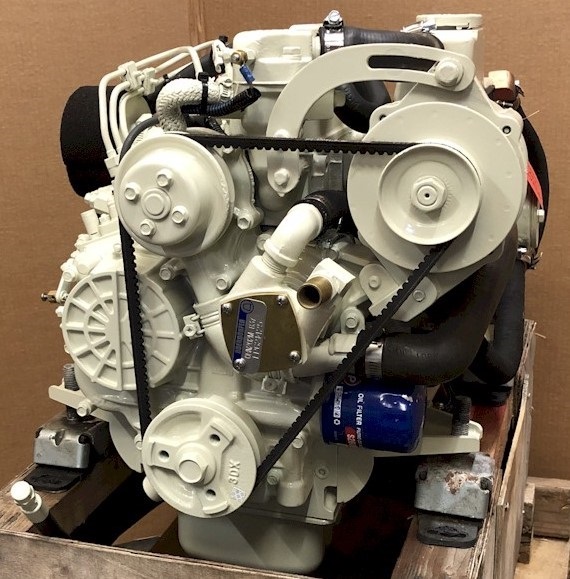

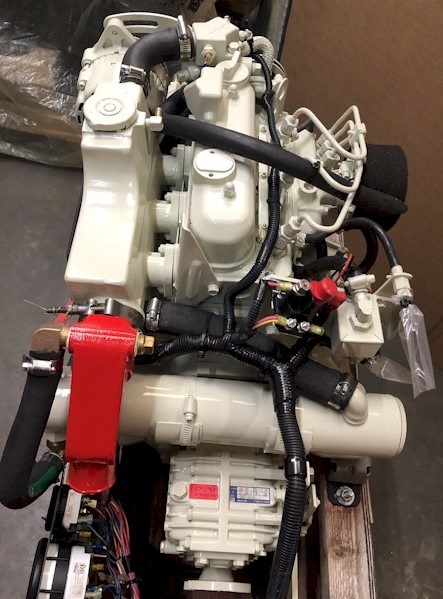

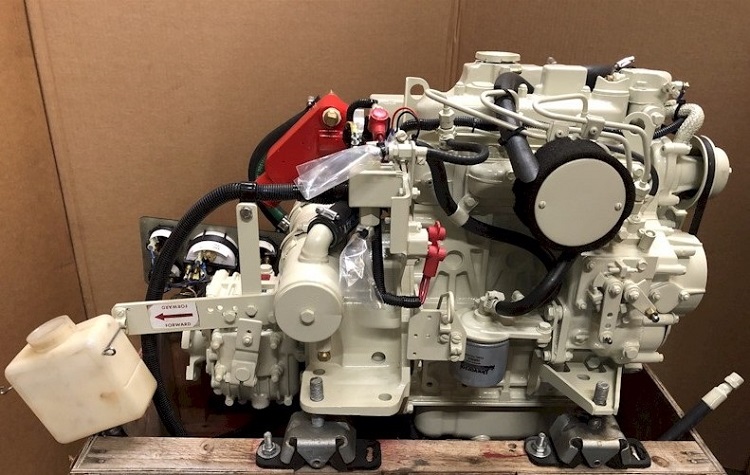

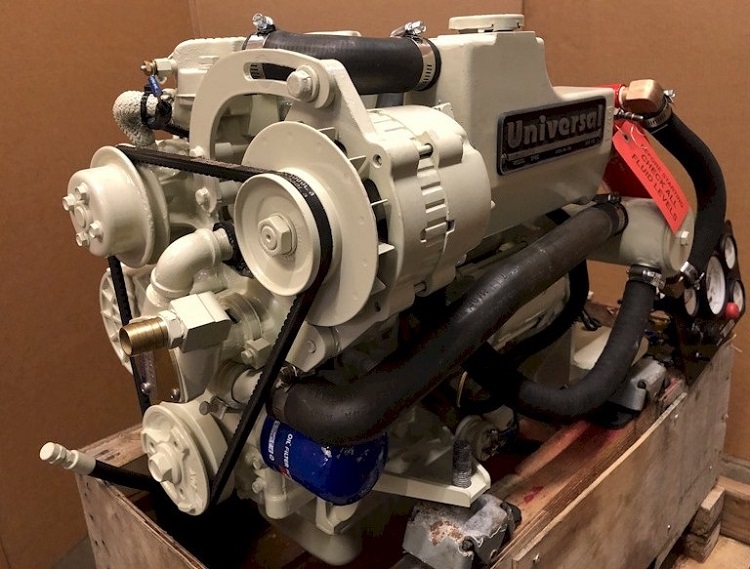

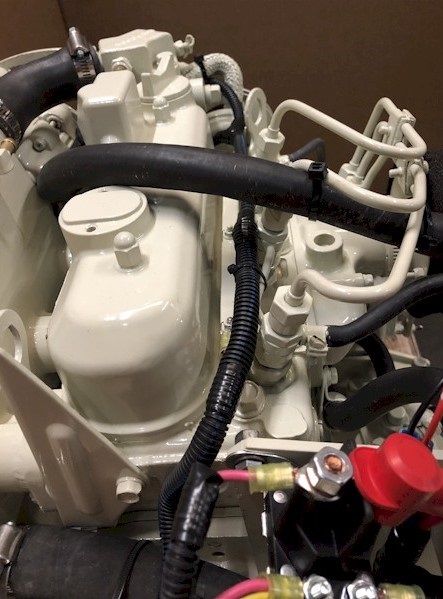

Universal M25 XPBC Marine Diesel Engine

The Universal M25 XPBC is a compact, reliable, and fuel-efficient inboard marine diesel engine producing approximately 25 HP, specifically designed for sailboats and small cruising vessels. Known for its simplicity, durability, and smooth operation, the M25 XPBC has become a popular choice for auxiliary propulsion in a wide range of sailing applications.

Engine Design & Construction

The M25 XPBC features a 3-cylinder, 4-stroke diesel configuration with mechanical fuel injection, delivering dependable power and smooth torque across the operating range. Built on a robust industrial diesel platform adapted for marine use, it offers long service life and consistent performance in demanding marine environments.

A freshwater cooling system with heat exchanger ensures stable operating temperatures while protecting internal components from corrosion. Its compact design allows easy installation in tight engine compartments, and well-laid-out service points simplify routine maintenance.

Performance & Efficiency

Delivering approximately 25 HP, the Universal M25 XPBC provides reliable thrust for cruising, maneuvering, and docking. Its strong low- and mid-range torque characteristics make it ideal for displacement hulls and auxiliary sailboat propulsion.

The engine’s mechanical injection system ensures excellent fuel efficiency, keeping operating costs low while maintaining dependable performance over long operating hours.

Marine Integration

The Universal M25 XPBC is compatible with marine transmissions and conventional shaft-drive systems, offering flexibility for new installations or repower projects. Its balanced 3-cylinder layout helps reduce vibration and noise, improving onboard comfort during extended voyages.

Ease of Maintenance & Reliability

Designed for ease of service, the M25 XPBC provides convenient access to filters, belts, and routine service items. Its simple mechanical layout minimizes downtime and maintenance complexity. Backed by the long-standing Universal marine engine legacy, it benefits from good parts availability and service support.

Ideal Applications

The Universal M25 XPBC Marine Diesel Engine is ideal for:

• Sailboats and auxiliary propulsion systems

• Small cruising yachts

• Coastal and inland waterways

• Owners seeking a compact, economical, and reliable marine diesel engine

Key Advantages

• Proven Universal marine diesel reliability

• Compact and space-efficient design

• Fuel-efficient 3-cylinder diesel engine

• Freshwater cooling with heat exchanger

• Smooth operation with reduced vibration and noise

• Simple maintenance and long service life

Technical Specifications

General

• Model: Universal M25 XPBC

• Engine Type: 4-stroke, vertical, water-cooled marine diesel

• Fuel System: Mechanical fuel injection

• Aspiration: Naturally aspirated

• Number of Cylinders: 3 inline

Displacement & Combustion

• Displacement: Approx. 0.9 liters

• Bore × Stroke: Approx. 72 mm × 73 mm

• Combustion Chamber: Indirect injection diesel

Performance

• Rated Power: Approx. 25 HP @ 3,000–3,200 RPM

• Rated Speed: Up to 3,200 RPM

• Torque Characteristics: Strong low- to mid-range torque for auxiliary propulsion

• Fuel Consumption: Economical, dependent on load and propeller matching

Cooling & Lubrication

• Cooling System: Freshwater cooling with heat exchanger

• Lubrication System: Forced lubrication with gear-type oil pump

• Engine Oil Capacity: Approx. 3.5 liters

• Recommended Oil Type: Marine-grade diesel engine oil

Electrical System

• Starting System: 12 V electric start

• Alternator: 12 V marine alternator

Dimensions & Weight

• Overall Dimensions (L × W × H): Approx. 820 × 480 × 570 mm

• Dry Weight: Approx. 160–175 kg (engine only, excluding gearbox)

Drive & Installation

• Rotation (Crankshaft): Counter-clockwise (viewed from flywheel end)

• Drive Type: Inboard shaft drive

• Compatible Gearbox: Universal marine transmission

• Mounting: Flexible marine engine mounts

Service & Adjustment

• Valve Clearance (Cold): Intake: 0.20 mm / Exhaust: 0.25 mm

• Firing Order: 1 – 2 – 3

• Maintenance Access: Easy access to filters, belts, and routine service points
