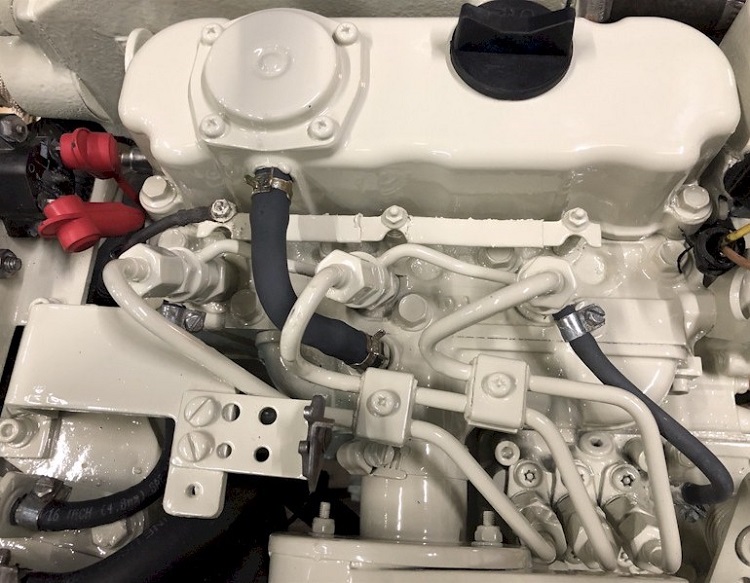

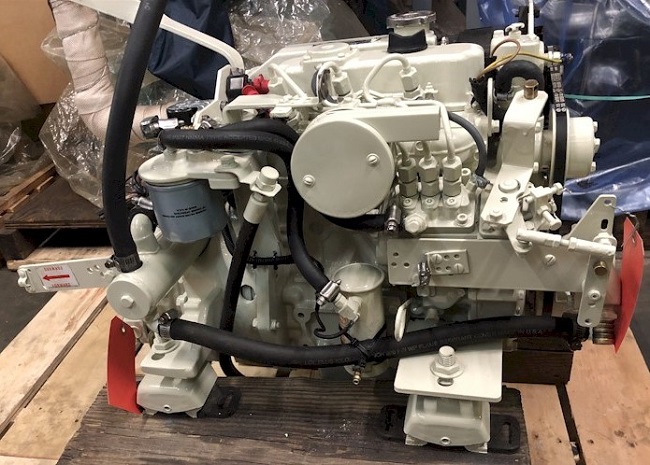

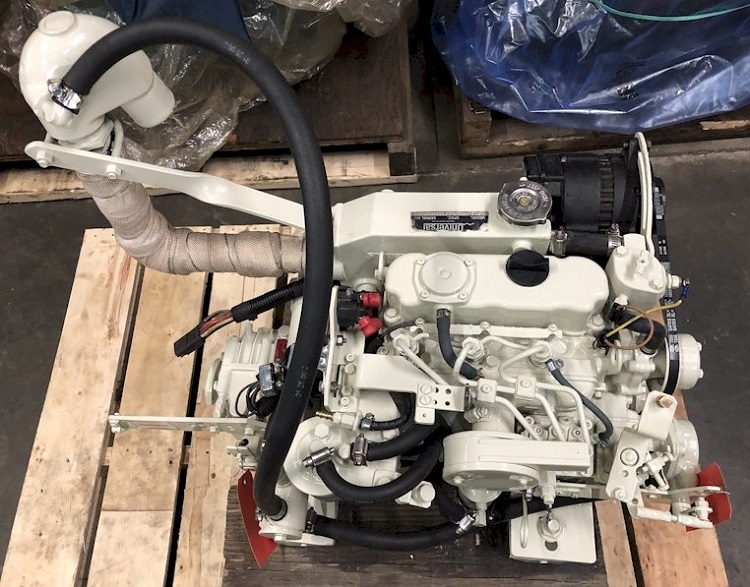

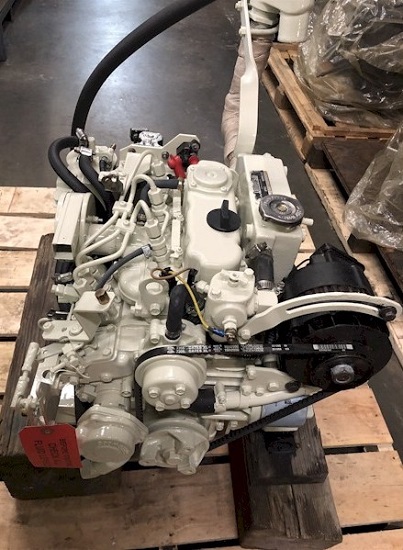

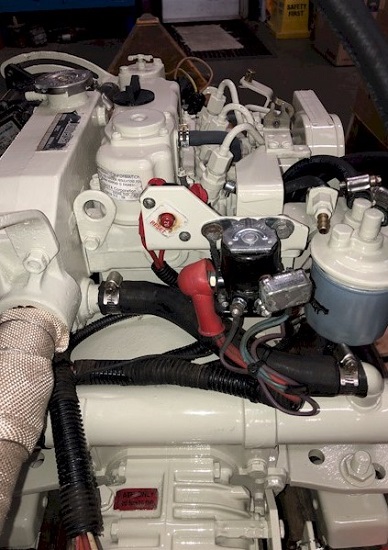

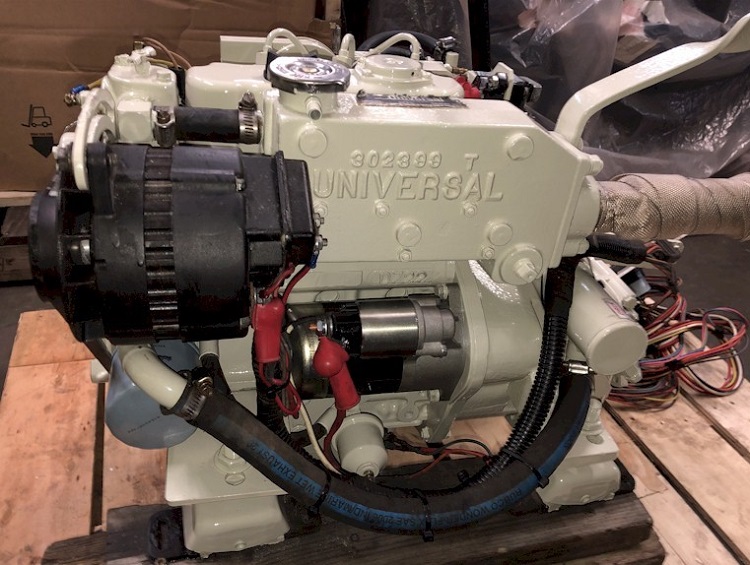

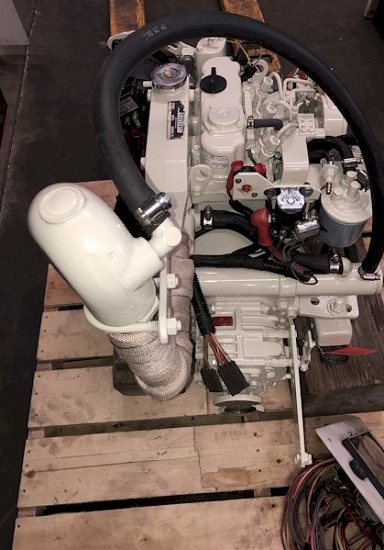

Universal M3-20B Marine Diesel Engine

The Universal M3-20B is a compact, efficient, and dependable inboard marine diesel engine delivering approximately 20 HP, designed to provide reliable auxiliary propulsion for sailboats and small cruising vessels. Renowned for its simplicity and durability, the M3-20B is an excellent solution for boat owners seeking consistent performance and economical operation.

Engine Design & Construction

The M3-20B features a 3-cylinder, 4-stroke diesel configuration with mechanical fuel injection, ensuring smooth power delivery and dependable torque across the operating range. Built on a proven industrial diesel platform adapted for marine use, the engine is designed to withstand continuous operation in harsh marine environments.

A freshwater cooling system with heat exchanger helps maintain stable operating temperatures while protecting internal components from corrosion. Its compact dimensions allow for easy installation in tight engine compartments, and well-placed service points simplify routine maintenance.

Performance & Efficiency

Producing around 20 HP, the Universal M3-20B provides sufficient thrust for cruising, maneuvering, and docking. Its strong low-RPM torque makes it particularly well-suited for displacement hulls and auxiliary sailboat propulsion.

The mechanical fuel injection system promotes excellent fuel efficiency and reliability, keeping operating costs low while delivering steady performance during extended cruising.

Marine Integration

The Universal M3-20B is compatible with marine gearboxes and conventional shaft-drive systems, making it suitable for both new installations and repower projects. The balanced 3-cylinder design reduces vibration and noise, improving onboard comfort.

Ease of Maintenance & Reliability

Designed with simplicity in mind, the M3-20B offers easy access to filters, belts, and routine service components. Its straightforward mechanical layout reduces maintenance complexity and supports long service intervals. Supported by the Universal marine engine legacy, it benefits from reliable parts availability and service knowledge.

Ideal Applications

The Universal M3-20B Marine Diesel Engine is ideal for:

• Sailboats and auxiliary propulsion systems

• Small cruising yachts

• Coastal and inland waterways

• Owners seeking a compact, economical, and reliable marine diesel engine

Key Advantages

• Proven Universal marine diesel reliability

• Compact and space-efficient design

• Fuel-efficient 3-cylinder diesel engine

• Freshwater cooling with heat exchanger

• Smooth operation with reduced vibration

• Easy maintenance and long service life

Technical Specifications

General

• Model: Universal M3-20B

• Engine Type: 4-stroke, vertical, water-cooled marine diesel

• Fuel System: Mechanical fuel injection

• Aspiration: Naturally aspirated

• Number of Cylinders: 3 inline

Displacement & Combustion

• Displacement: Approx. 0.85–0.90 liters

• Bore × Stroke: Approx. 72 mm × 73 mm

• Combustion Chamber: Indirect injection diesel

Performance

• Rated Power: Approx. 20 HP @ 3,000–3,200 RPM

• Rated Speed: Up to 3,200 RPM

• Torque Characteristics: Strong low-RPM torque for auxiliary propulsion

• Fuel Consumption: Economical, dependent on load and propeller matching

Cooling & Lubrication

• Cooling System: Freshwater cooling with heat exchanger

• Lubrication System: Forced lubrication with gear-type oil pump

• Engine Oil Capacity: Approx. 3.0–3.5 liters

• Recommended Oil Type: Marine-grade diesel engine oil

Electrical System

• Starting System: 12 V electric start

• Alternator: 12 V marine alternator

Dimensions & Weight

• Overall Dimensions (L × W × H): Approx. 780 × 460 × 550 mm

• Dry Weight: Approx. 140–155 kg (engine only, excluding gearbox)

Drive & Installation

• Rotation (Crankshaft): Counter-clockwise (viewed from flywheel end)

• Drive Type: Inboard shaft drive

• Compatible Gearbox: Universal marine transmission

• Mounting: Flexible marine engine mounts

Service & Adjustment

• Valve Clearance (Cold): Intake: 0.20 mm / Exhaust: 0.25 mm

• Firing Order: 1 – 2 – 3

• Maintenance Access: Easy access to filters, belts, and routine service points
