Description

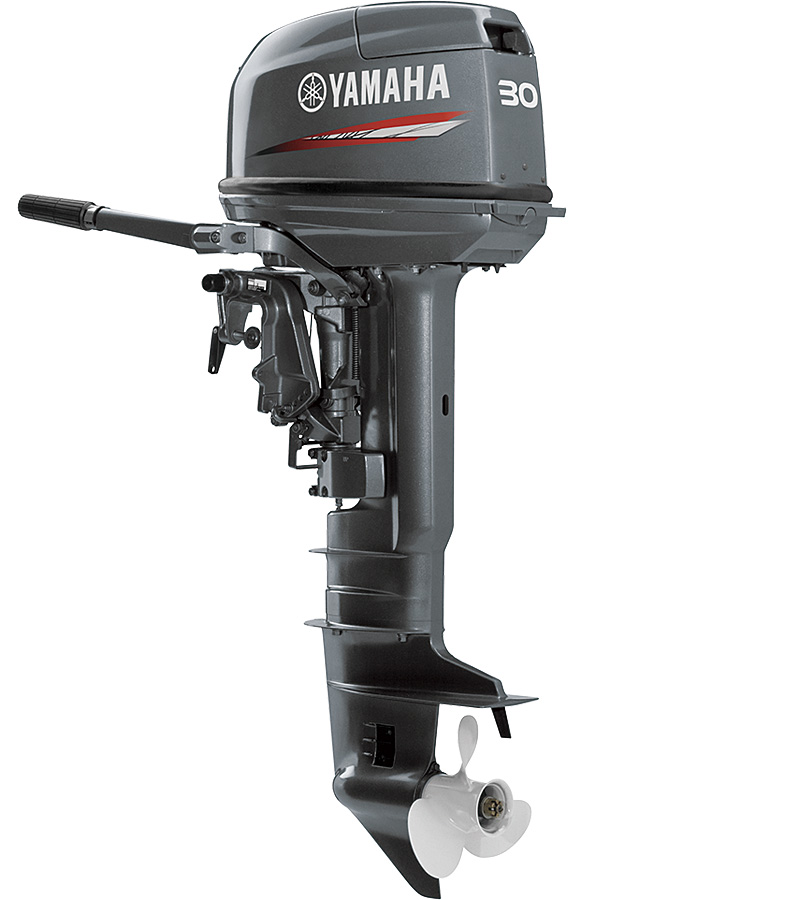

Yamaha 30HMHS | 30hp 2 Stroke Outboard Engine Short Shaft

Customer Value of course.

If you’re a boater who demands the very best at a reasonable price then Yamaha’s range of CV engines are for you. Built around a proven formula, the CV range provides everything you’d expect from a Yamaha motor; great performance matched with legendary reliability.

This range of hard working outboards offer excellent value and no frills reliability. Simple as that, really!

Available in:

30HMHS – Manual Start, Tiller Handle, Transom height – Standard
30HMHL – Manual Start, Tiller Handle, Transom height – Long
30HWL – Manual & Electric Start, Transom height – Long

General Features Yamaha 30HMHS:

Pre mix 100:1
13P Alloy prop
24 L Fuel tank & hose
Shallow water drive
Lighting coil

Specifications Yamaha 30HMHS:

Engine Type 2-Stroke, In-line 2
Displacement 496.0 cc
Bore x Stroke 59.5 x 59.5 mm
Recommended Max RPM 5000-5500
Lubrication System Pre-mixing
Fuel Management Carb
Ignition CDI
Starter System Manual
Lighting Coil 12V – 80W (MH)
Alternator Output 12V – 6A with rectifier (W)
Operation Method Remote control (W), Tiller handle (MH)
Trim & Tilt Method Manual tilt
Fuel Tank Capacity 24.0 L
Gear Ratio 2.08 : 1

Dimensions Yamaha 30HMHS:

Transom Length
30HMHS : 423 mm (16.7 in)
30HMHL : 550 mm (21.7 in)
30HWL : 550 mm (21.7 in)
30HWHL : 550 mm (21.7 in)
Weight
30HMHS : 53 kg
30HMHL : 54 kg
30HWL : 58 kg
30HWHL : 58 kg
CDI-M: CDI-MicrocomputerCDI-E: CDI-Electronic Automatic
TCI: Transistor Controlled Ignition

Package Includes Yamaha 30HMHS:

Cable lanyard to stop the engine
Motor deviation when driving in shallow water
Starter lock on reverse
Propeller screw:
Tool kit
Emergency start cord
Manual Start
Tiller Handle
Transom height – Long
