Description

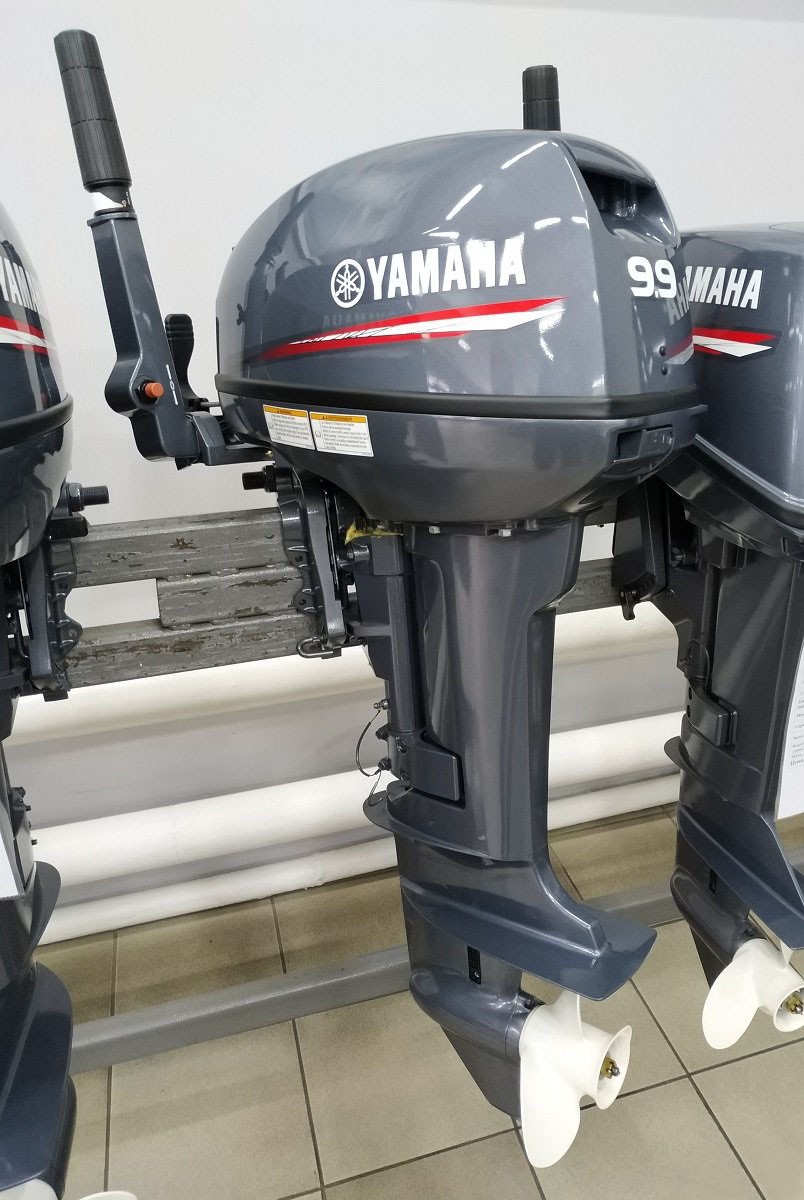

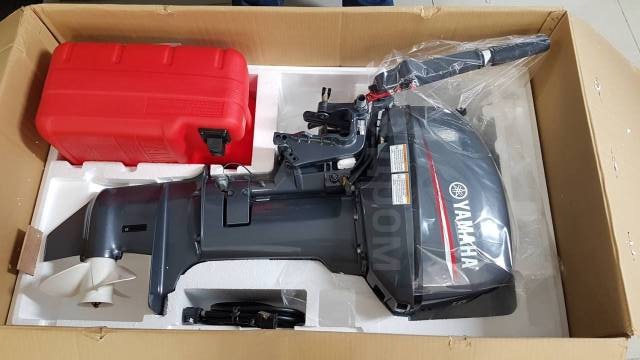

Yamaha 9.9hp 9.9 GMHS 2 Stroke Outboard Engine Short Shaft

Features:

Type: Hanging
Type of control: Tiller
Boat transom height (cm): 442
Grade: with propeller
Starter Type: Manual
Weight (kg): 36

Specifications:

Starter: manual
Control system: tiller
Engine specifications: 2-cylinder. 2-beat
Displacement (cc): 246
Compression ratio: 6.8
Power (hp): 9.9
Bore x stroke (mm): 56 x 50
Range max engine speed: 4500-5500 rpm
Ignition system: Cdi
Purge: simultaneous charging
Supply system: 1 carb
Fuel tank (l): 24
Max. fuel consumption (l / h): 5.1

Lubrication system: premixing
The proportion of the fuel-oil mixture: 50: 1
Alternator: 6A, 80 W
Gear shift mechanism: Fnr
Gear ratio: 2.08 (27/13)
Exhaust system: through the propeller hub (JET system (Reactive)
Propeller gearing: splined connection
Transom engine height: S 442 mm (17.4 in.)
Dry weight with propeller: 36.0 kg
Trim and tilt: tame
Cable lanyard to stop the engine: there is
Motor deviation when driving in shallow water: there is
Rectifier Regulator: rectifier with regulator
Starter lock on reverse: there is
