Description

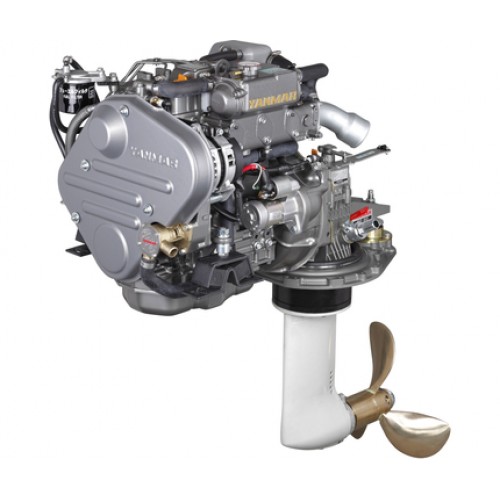

Yanmar 3JH5E 39 HP Marine Diesel Engine Inboard

Compact and Powerful, Clean and Quiet, there are mid-range three and four- cylinder diesels based on a completely redesigned engine block and new combustion system. You can enjoy more displacement, power and torque with low vibration, low noise and low emission. Maintenance is easy and straightforward.

Specifications:

Configuration: 4-stroke, vertical, water-cooled diesel engine
Maximum output at crankshaft: * 28.7 kW@3000 rpm [39 mhp@3000 rpm]
Displacement: 1.642 L [100 cu in]
Bore x stroke: 88 mm x 90 mm [3.46 in x 3.54 in]
Cylinders: In-line
Combustion system: Direct injection
Aspiration: Natural aspiration
Starting system: Electric starting 12V – 1.4 kW
Alternator: 12V – 125A
Cooling system: Fresh water cooling by centrifugal fresh water pump and rubber impeller sea water pump
Lubrication system: Enclosed, forced lubricating system
Direction of rotation [crankshaft]: Counterclockwise viewed from stern
Dry weight without gear: 173 kg [381 lbs]
Emission compliance EU: RCD 2 BSO II EMC US: EPA Tier 2
Engine mounting: Rubber type flexible mounting
Factory Warranty: 5 Years Extended Warranty

Package Include:

Set of flexible engine mounts
Exhaust mixing elbow [L-type]
Belt safety cover
Fresh water expansion tank
Alternator 12V – 125A
Electric stop solenoid
Operation manual
Sensor for instrument panel
B20-panel
Choice Of Transmissions: KM35P, KM35A (Down Angle 7°), Saildrive [SD60]
