Description

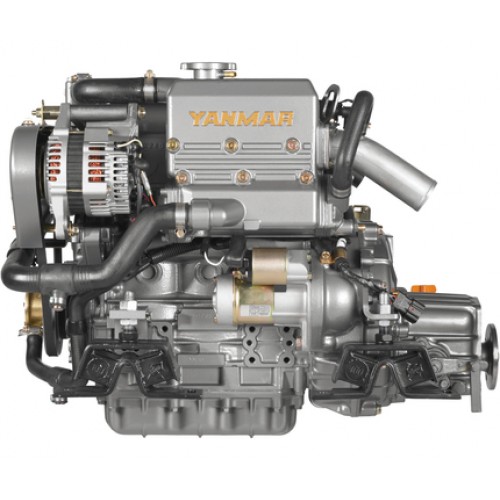

Yanmar 3YM30AE 29 HP Diesel Engine Marine

4-Stroke Vertical Water Cooled Inboard

YM Series NEW 3YM30 (29HP/21kW) More displacement, more torque, quieter, cleaner running and featuring an all-new three-cylinder block and combustion system. This is the latest in high output marine diesel technology.

Specifications:

Combustion System: Indirect Injection
Cylinders: 3
Direction Of Rotation [Crankshaft]: Counterclockwise Viewed From Stern
Lubrication System: Enclosed, Forced Lubricating System
Starting System: Electric Starting 12V – 1.4 kW
Configuration: 4-Stroke, Vertical, Water-Cooled Diesel Engine
Maximum Output At Crankshaft: * 21.3 kW@3200 rpm [29.1 mhp@3200 rpm]
Displacement: 1.266 ltr [77 cu in]
Bore X Stroke: 80 mm x 84 mm [3.1 in x 3.3 in]
Aspiration: Natural Aspiration
Alternator: 12V – 120A
Cooling System: Fresh Water Cooling With Heat Exchanger
Dry Weight Without Gear: 127 kg [280 lbs]
Engine Mounting: Rubber Type Flexible Mounting
Factory Warranty: 2 Years

Package Include:

Set of flexible mounts
Exhaust mixing elbow [L-type]
Belt safety cover
Expansion tank for fresh water cooling system
Alternator 12V – 125A
Electric stop solenoid
Operation manual
Sensor for instrument panel
B20-panel
Choice Of Transmissions: KM2P-1 (parallel) or Saildrive [SD25]
