Description

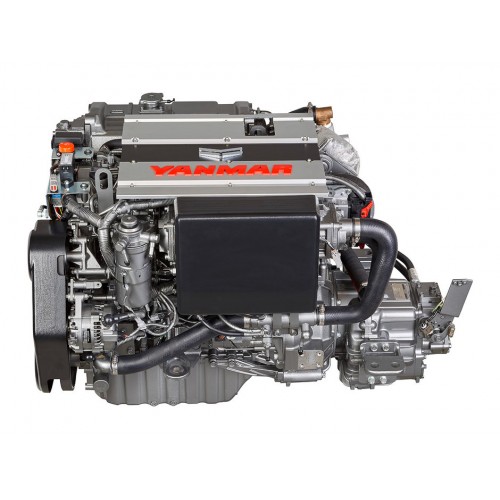

Yanmar 4LV170 4 Stroke 170 HP

The Yanmar 4LV170 is a high-performance, 4-stroke, vertical, water-cooled marine diesel inboard engine delivering 170 mhp (125 kW) at 3,500 rpm. It features a 2.755-liter displacement, 4 in-line cylinders, and a Denso common rail fuel injection system.

Features:

Yanmar 4LV170 4 Stroke 170 HP Marine Diesel Engine Inboard

Specifications:

Charger: 12 V – 130 A
Cylinders: 4 in-line
Drilling X Impact: 92 mm x 103.6 mm
Dry Weight Without Switch: 332 kg
Engine Support: Flexible Rubberized
Fuel System: Direct Injection, Denso Common-Rail System
Instruments: B25-Panel
Maximum Power Measured From Crankshaft *: 125 kW / 3500 rpm
Starter: Electric Start 12 V – 2 kW
The Direction Of Rotation: Counterclockwise In The Direction Of The Flywheel
Displacement: 2,775 Liters
Cooling System: Freshwater Cooling / Seawater Cooling
Factory Warranty: 2 Years

Package Include:

• Exhaust mixing elbow [L-type]
• Alternator 12V – 130A
• B25 panel
• Oil sensor for instrument panel
• Mechanical throttle sensor
• Set of flexible engine mounts
• Fresh water expansion tank
• Belt safety cover
• Engine topcover for protection
• Operation manual
• Choice Of Transmissions: KMH50A [down angle: 8º] or KMH50V [V-drive, angle: 12º]
