Description

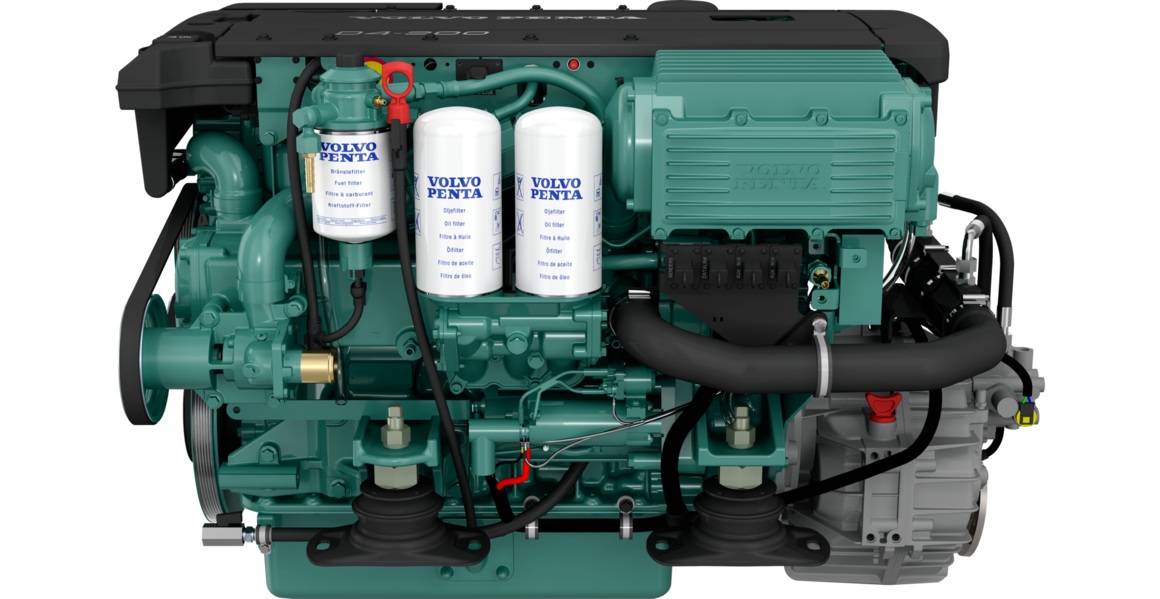

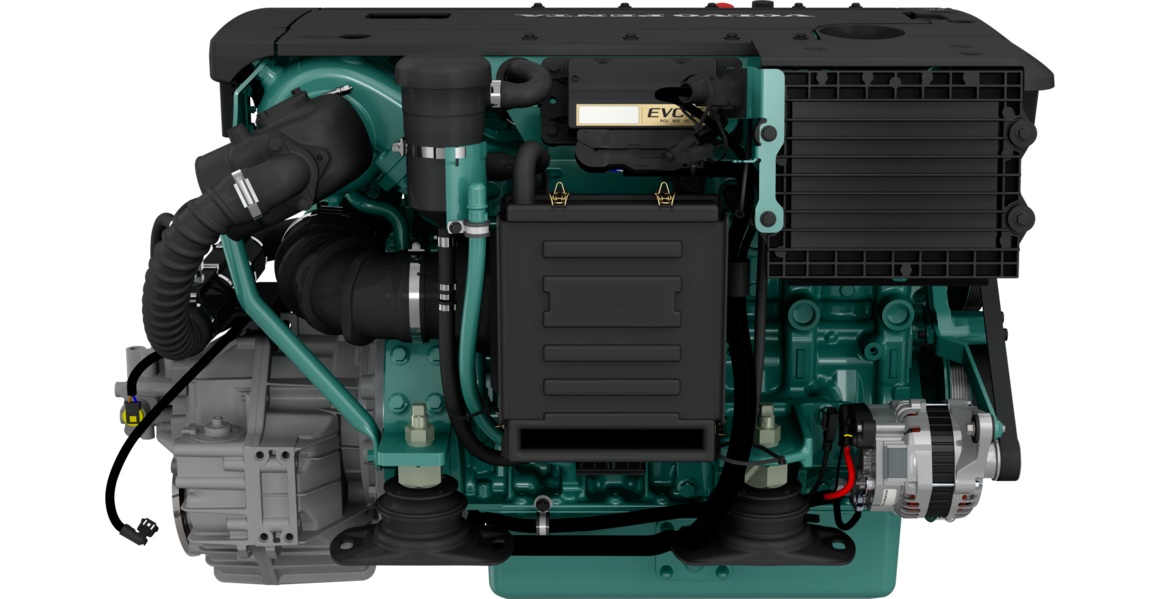

Volvo Penta D4-180 Inboard 180 hp

Volvo Penta 4-cylinder D4-180

The Volvo Penta D4-180 is a 180 hp, 4-cylinder, 3.7-liter marine diesel inboard engine featuring common-rail fuel injection, a turbocharger, and low noise and vibration levels.

Together with a large swept volume and the EVC system (Electronic Vessel Control) this results in world-class diesel performance, combined with low emissions.

Volvo Penta D4-180 It is developed from the latest design in modern diesel technology. The engine has common rail fuel injection system, double overhead camshafts, 4 valves per cylinder, turbocharger and after cooler.

Volvo Penta inboard diesel (180 hp) delivers powerful, fuel-efficient, and reliable performance with strong torque and smooth operation for sailboats, cruisers, and commercial

The Volvo Penta Inboard (180 hp) marine diesel engine delivers robust, fuel-efficient performance with strong torque, smooth operation, and dependable reliability ideal for sailboats, cruisers, and commercial vessels.

Technical Specifications

Engine designation : Volvo Penta D4-180
Crankshaft power, kW (hp) : 132 (180)
Propeller shaft power, kW (hp) : 128 (174)
Engine speed, rpm : 2800
Displacement, l (in^3) : 3.7 (226)
Number of cylinders : 4
Bore x stroke mm (in) : 103/110 (4.05/4.33)
Compression ratio : 17.5:1
