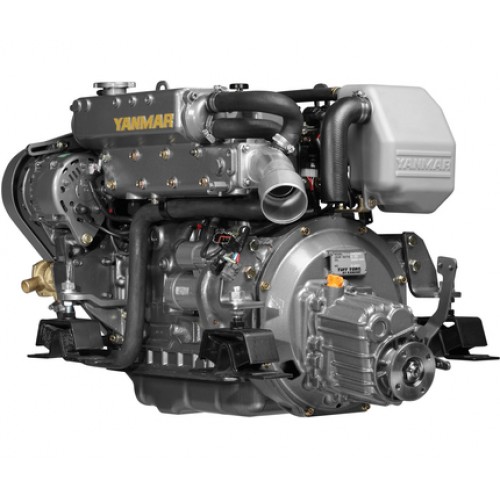

Yanmar 4JH5E Marine Diesel Engine Inboard 54 HP

JH Series 28.7–92kW (39–125HP) Three and four-cylinder direct injection diesels with heat exchanger cooling. Choices of natural aspiration, turbocharged and turbo/aftercooler models, with straight drive or angle drive transmissions. Smaller horsepower models are also offered with Saildrive units. JH Series 3JH4 (39HP/28.7kW) The Yanmar 3JH4 is an all-new naturally aspirated engine for sailboats and motor craft quieter, cleaner and producing more torque with the largest displacement and smallest dimensions in its class. It’s fullfy compliant with EPA Tier 2 emissions regulations and with BSO/SAV Stage 2 requirements.

Specifications:

Combustion System: Direct Injection
Cylinders: In-line
Direction Of Rotation [Crankshaft]: Counterclockwise Viewed From Stern
Lubrication System: Enclosed, Forced Lubricating System
Starting System: Electric Starting 12V – 1.4 kW
Configuration: 4-Stroke, Vertical, Water-Cooled Diesel Engine
Maximum Output At Crankshaft: * 39.6 kW@3000 rpm [53.8 mhp@3000 rpm]
Displacement: 2.19 L [134 cu in]
Bore X Stroke: 88 mm x 90 mm [3.46 in x 3.54 in]
Aspiration: Natural Aspiration
Alternator: 12V – 125A
Cooling System: Fresh Water Cooling By Centrifugal Water Pump And Rubber Impeller Sea Water Pump
Dry Weight Without Gear: 201 kg [443 lbs]
Engine Mounting: Rubber Type Flexible Mounts
Factory Warranty: 2 + 3 Years Extended Warranty

Package Include yanmar 54 hp marine diesel

Set of flexible engine mounts
Exhaust mixing elbow [L-type]
Belt safety cover
Fresh water expansion tank
Alternator 12V – 125A
Electric stop solenoid
Operation manual
Sensors for instrument panel
B25-panel
Choice Of Transmissions: KM35P, KM35A2 [down angle: 7º], KM4A1-5 [down angle: 7º], ZF30M, Saildrive SD60
